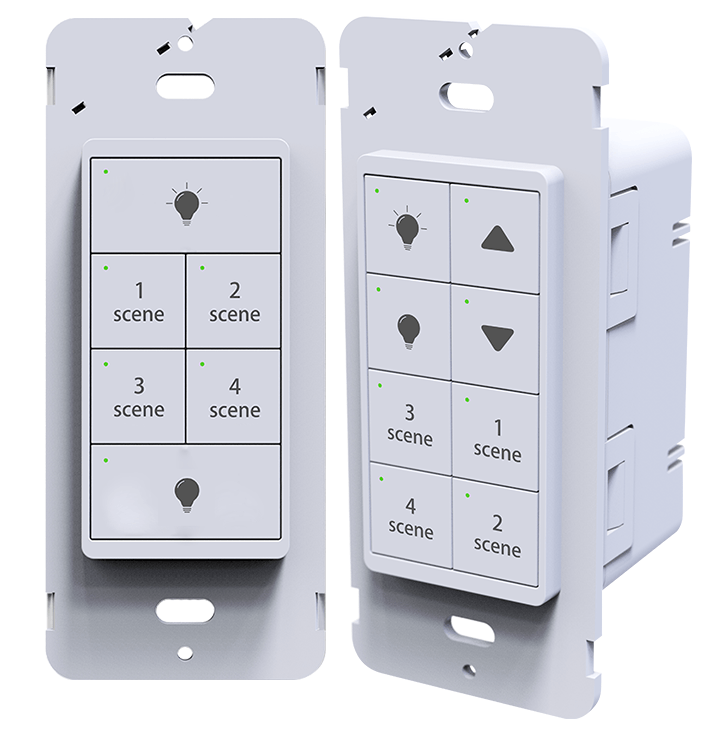

AC input wireless In-Wall Switch ATOM Series
This mechanical and electrical sound design is capable of providing multi-functions and allow wirelessly control lighting devices in various platforms. This is a must have components to excel user experiences in the Casambi wireless environment.
Features
- Best low power load support, no bypass part or low power light adapter required
- 8 button design circuit operate and do not require system control
- Default local circuit operate and do not require system control
- 20dBm 2.4G for long range communication
- Power failure memory to return to its previous set level prior to the interruption of power
- Compatible to designer style wall plates or standard off-the-shelve wall plates
- Fit in 1-gang U.S. wall box
- 2 1/2″ minimum depth recommended
- Non-neutral design make installation easier (ZigBee only)
- Available color – white
- Face plate color (Optional)
- A1 Dark Chocolate
- A2 Warm Caramel
- A3 Moon Rock
- A4 Silver Gray
- A5 Pebble Gray
Technical Facts
- Input : 110 ~ 277VAC/47-63Hz
- Relay switching capability : 5A/120VAC
- 3A/277VAC
- Operating Environment : 0 – 50 Deg.C
- Radio Properties : 2.4GHz
- 20dBm transfer power
- Internal Antenna : Built-in
- Controls : 2 to 8 buttons for on/off
- dim
- scene selection
- Dimensions : 44.40 x 33.20 x 105mm (L x W x H)
